Product Description

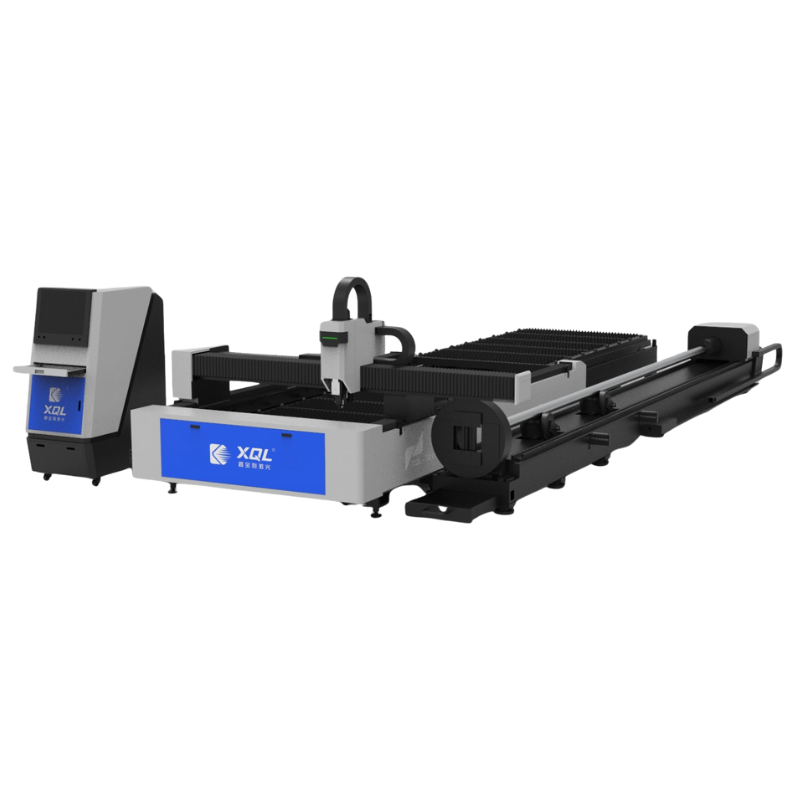

X3015GAE plate & pipe fiber laser cutting machine is a dual-purpose machine, which not only meets the arbitrary shape cutting of metal plates, but also can meet the cutting of various pipes, such as stainless steel pipes, carbon steel pipes, aluminum pipes and other metal pipes for round hole cutting, square hole cutting and irregular pattern cutting. Equipped with a chuck, the chuck is self-centered and automatically adjusts the clamping force according to the specifications. Professional laser cutting system, which can be easily operated through the human-computer interaction interface.
Product Advantage
1. One machine for two purposes, to meet all kinds of plate and pipe cutting.
2. The bed is stable and durable, the equipment is stable and the service life is long.
3. Advanced chuck clamping system, automatically adjust the clamping force according to the plate specifications.
4. The power consumption of a fiber cutting machine is 20% to 30% of that of a CO2 laser cutting machine with the same power. It uses only 0.5W to 1.5W of electricity per hour and is very easy to maintain, with no need to adjust the optical path.
Product Configuration
|
NO. |
Name |
Quantity /Specification |
Brand |
Remark |
|
1 |
Control System |
1 set |
FSCUT |
Shanghai |
|
2 |
Programming software | |||
|
3 |
Fiber-optic laser |
1500-3000W |
Raycus |
Wuhan |
|
4 |
Cutting head |
1 pcs |
RayTools/Ospri |
Optional |
|
5 |
Machine bed |
1 set |
Plate welding bed |
|
|
6 |
Tool machinery platform and accessories |
Cutting width 3000*1500mm |
XQL Customization |
|
|
7 |
Servo Motors and Drives |
1 set |
Inovance |
China |
|
8 |
Precision reducer |
1 pc |
Motoreducer |
China |
|
9 |
Chiller |
1 set |
Hanli |
Wuhan |
Technical Parameter
| Name | Parameter |
| Machine Model | 3015GAE |
| Power | 1500W/2000W/3000W |
| Plate Cutting range (length × width) | 3000*1500(mm) |
| Round & Square pipe processing range | Φ20-Φ220(mm) L 6m |
| X-axis stroke | 3050(mm) |
| Y-axis stroke | 1550(mm) |
| Z-axis stroke | 150(mm) |
| Positioning precision of X/Y axis | ±0.03mm/m |
| Maximum speed | 80m/min |
| Protection rating of main power | IP54 |
| Operating Voltage | AC220V/AC380V |
| Frequency | 50Hz/60Hz |
| Equipment size | 5200*3200*1700(mm) |
| Total weight | 6000kg |
Cutting Parameter
| Material | Laser Power | |||||||
| 1000W | 1500W | 2000W | 3000W | 6000W | 8000W | 12000W | 20000W | |
| Carbon Steel | 10 | 14 | 16 | 20 | 25 | 30 | 40 | 70 |
| Stainless Steel | 4 | 6 | 8 | 10 | 16 | 30 | 30 | 50 |
| Aluminum | 3 | 3 | 4 | 6 | 14 | 25 | 30 | 30 |
| Brass | 2 | 3 | 4 | 5 | 10 | 12 | 16 | 20 |
